Hard Rock Core Drilling Bit Nq Hq Turbo Diamond Bits

Name: Hard Rock Core Drilling Bit Nq Hq Turbo Diamond Bits
Brand: Aoxing
Price: 1 USD

China Hard Rock Core Drilling Bit Nq Hq Turbo Diamond Bits factory

Brand Name : Aoxing

Model Number : AQ BQ NQ HQ PQ BTW NTW HTW

Certification : ISO9001

Place of Origin : Hebei,China

MOQ : 1 Piece

Supply Ability : 1000 Piece/Month

Packaging Details : in Plywood Case

Model NO : BQ BQ3 NQ NQ2 NQ3 HQ HQTT HQ3 PQ PQ3 NTW HTW

Type : Core Drill Bit

Material : Diamond

Usage : Deep Hole Hard Rock Core Drilling

Standard : Dcdma

Origin : China

Contact Now

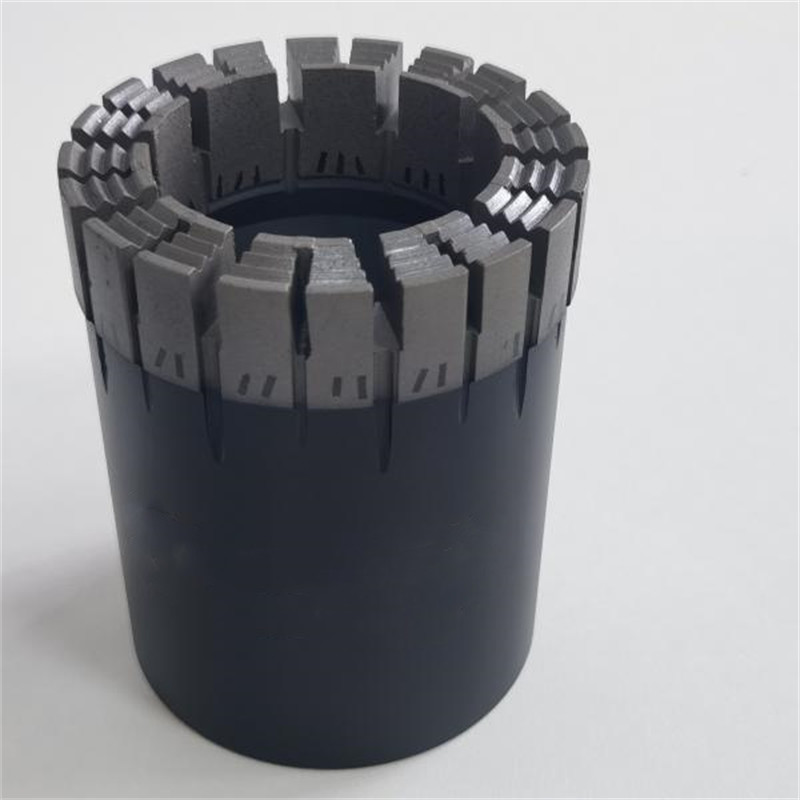

Hard Rock Core Drilling Bit Nq Hq Turbo Diamond Bits

The main crown technical parameters of impregnated diamond core bits include diamond grade,size, concentrarion and quality,matrix hardness and crown shapes. The users can make rational selections according to the formations to be drilled.

To avoid excessive bit wear, tungsten carbide inserts are used on both sides on the waterway,and gage stones are a bit large. Impregnated Diamond Core Bit is made with high quality synthetic diamonds, mixed evenly through a metal alloy matrix. It can drill various formations from the softest to hardest rocks.

Size:
Long life diamond core bits are available in all standard drilling sizes . Also, non-standard sized bits can be produced according to requirements from clients.

Crown Height:
We could offers crown impreg depths of 9mm, 12mm, 14mm and 16mm . The taller crown heights provide improved bit stability and reduced vibrations, enhancing bit life and performance.

Waterways:
Various waterways are available for diamond impregnated bits. Differing waterways allow for better flushing in various ground conditions and drilling systems.

Hard Rock Core Drilling Bit Nq Hq Turbo Diamond Bits

RocksTEC offers different sizes of bits with standard impregnation depths from 9mm to 25mm. Customized requirements about depth, profiles & water ways are available.

The matrix height refers to the thickness of the diamond impregnated matrix layer on a core bit crown.

Hengshui Aoxing Geological Equipment Co., Ltd has over 10 years of market experience and is a manufacturer and supplier of grouting materials and drilling materials in the fields of water conservancy, geology, mining, tunnels, subways, construction, geological exploration, mining exploration, geotechnical engineering, soil investigation, etc.

The main products include: inflatable or water filled packers, manual packers, high-pressure grouting pipes, pneumatic hoses, FULO grouting pipes, sleeve valve grouting pipes, grouting data acquisition instruments, grouting pumps, screw grouting pumps, cement mixers, high-speed grouting machines, mud stations, sprayers, Lurong test packers and Lurong test equipment, diamond drill bits, hole extenders, geological drill rods and casings, exploration drilling rigs, water well drilling rigs, engineering drilling rigs, hydraulic drilling rigs, air compressors, core barrels, salvage barrels, SPT tools, soil sampling tools, drilling tools and accessories, grouting pump accessories and drilling rig accessories, etc.

Our team is dedicated to dam curtain consolidation grouting, foundation engineering grouting, mineral exploration, soil investigation, and geological engineering. Provide solutions for engineering drilling.

We can provide accurate, valuable, and targeted solutions and services to our customers based on their specific requirements and needs.
