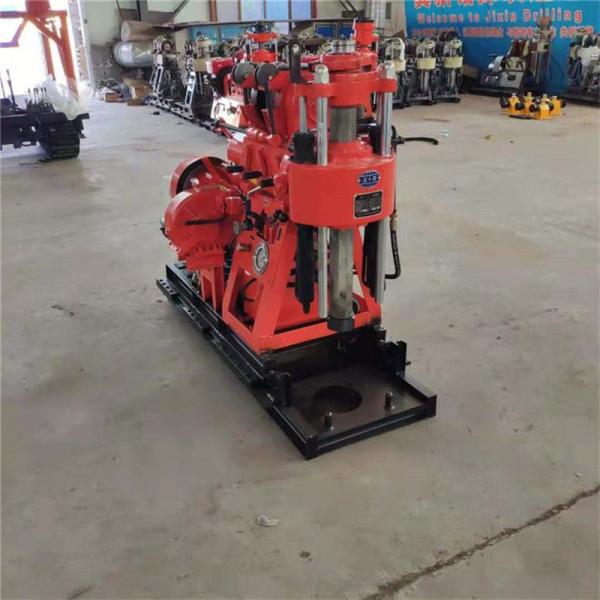

Diamond Bit Core Drill Equipment For Road And Building Exploration Engineering

Brand Name : Aoxing

Model Number : XY-150 type

Certification : ISO9001

Place of Origin : Hebei,China

MOQ : 1 Set

Supply Ability : 50 Sets/Month

Packaging Details : in New Strong Plywood Case

Model NO. : XY100/XY150/XY180/XY200

Condition : New

Drill Hole Diameter : 76-220mm

Drill Hole Depth : 100-300M

Bit Type : Diamond Bit

Drilling Way : Rotary

Drilling Rig Base : Sliding Skid Base/Crawler Chassis/Wheels

Application : Core Sampling/Spt/Engineering Drilling

After-sales Service : Provide Train Video Or Remote

Warranty : Main Parts Within Six Months

Contact Now

Drilling Machine, Drilling Equipment for Road and Building Exploration Engineering, Core Drilling Rig

XY Series are spindle core geotechnical and geophysical drilling rigs most perfectly suitable for borehole drilling in geo-construction and geo-technical exploration drilling in projects like civil building, construction of railway, hydropower, highway, bridge and dam etc. Typically, they are mainly used for:

  • Soil sampling with auger drilling.
  • Anchor drilling
  • Micro piling.
  • Geothermal drilling.
  • Core drilling with conventional coring tools.
  • Water well drilling by carbide and rotary drilling.

Specification

Model (YY series products) XY-130Y/130YY XY-18OY/18OYY XY-200Y/200YY
Depth (m) 130 180 200
Opening diameter. (mm) 220 220 325
Endend hole dia. (mm) 75 75 75
Rod dia (mm) 42-60 42-60 42-60
Drilling angle (°) 90-75 90-75 90-75
Traction power (kw) 13.2 13.2 15
Weight without power distribution (kg) 560 610 1150
Unqualified (mm) 2.4*0.7*1.4 2.4*0.6*1.4 2.7*0.9*1.6
Speed (r/min) 142/285/570 130/300/480/730/830/1045 64/128/287/557
Memory lesson (mm) 450 450 450
Maximum tension (kg) 1600 2000 2400
Speed of each unit (m/min) 0.41-1.64 0.35-2.23 0.12-0.95
The diameter of the wire rope is Rope dia. (mm) φ9.3 φ9.3 φ12.5
Capacity (m) 27 35 35
Fixed load (tons) 2 2 5
Are you free on Wednesday afternoon? 6 6 6
Size specification (L/min) 95 95 145
Maximum pressure.Pressure (Mpa) 1.2 1.2 2
Time (yuan/min) 93 93 93
Water spray hose dia. (mm) 51 51 51
Pumping hose dia. (mm) 32 32 32

Diamond Bit Core Drill Equipment For Road And Building Exploration EngineeringDiamond Bit Core Drill Equipment For Road And Building Exploration EngineeringDiamond Bit Core Drill Equipment For Road And Building Exploration EngineeringDiamond Bit Core Drill Equipment For Road And Building Exploration Engineering
